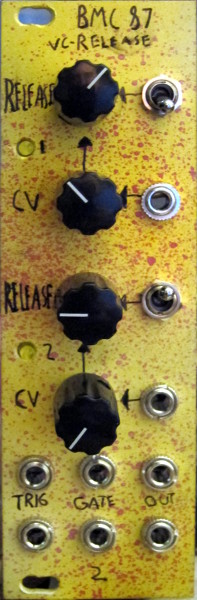

This module is 2 channels of envelope generators with release control. Release times range from approximately three min to one ms with a toggle to disable long envelope times. Control voltages can adjust release time. Seperate inputs for envelopes sustained by gate length or envelopes that immediately go to release
Compatable in +/-12V or +/-15V systems. PC Mounted pots, and mounting holes. Eurorack and MOTM connecter pads for maximum build flexibility
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 8HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
