Takes a gate/trigger input and outputs a burst of pulses. The amount and speed of the pulses are controlled with knobs and control voltages. Can be set to a specific number of pulses, a random number or pulses to fill up a specific amount of time.
Compatible with 12V or 15V systems. Can be used with 9mm or 16mm pots, my panel is designed for 16mm pots.
For complete descriptions of the way the module is used, mp3 samples and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for a PCB/PIC combo is $14.

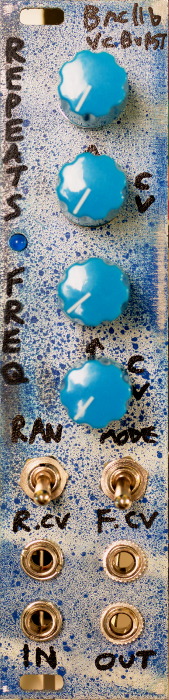

Unfinished eurorack
panels are available for this project, they are 6HP and cost $8 each.
There is

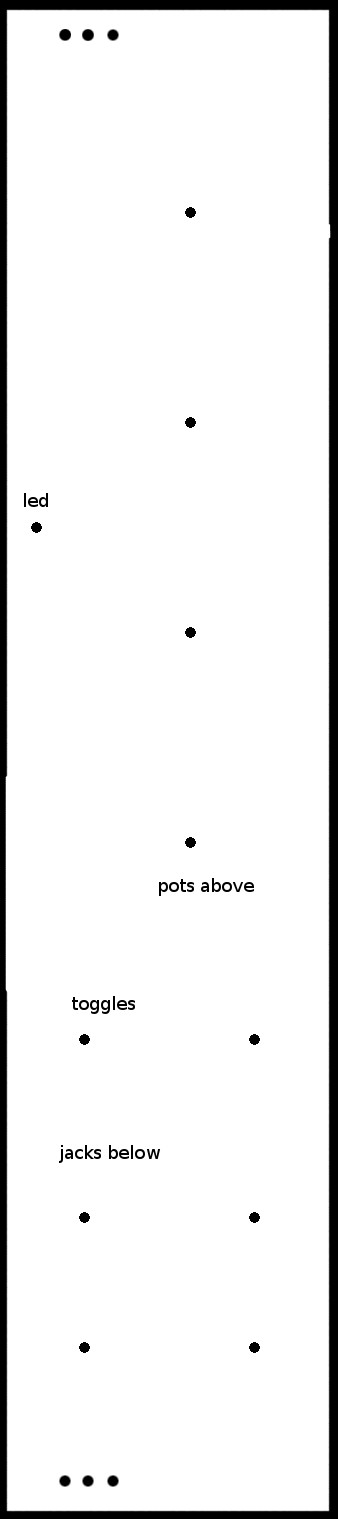

more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
