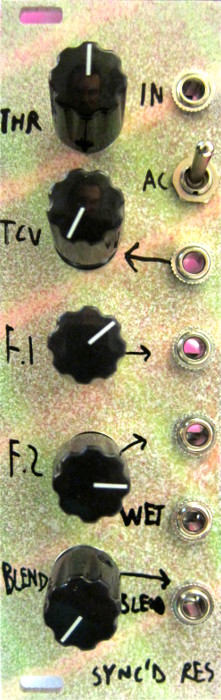

This module uses two gated oscillators that get turned on and off by a VCO input. The thresholds are controllable with external CV and each oscillator has independent frequency controls. This creates wild new harmonics when mixed back in with the original signal
Compatible with 12V or 15V systems, PC mounted pots, but jacks are offboard.
Audio Demo: A sine Wave goes through a VCA and into
the Synched Resonator. The two oscillator outputs are
panned left and right and the clean signal is in the center.
Only the threshold and frequency knobs on the Synched
Resonator are adjusted.
For complete descriptions of the way the module is used, mp3 samples and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 8HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

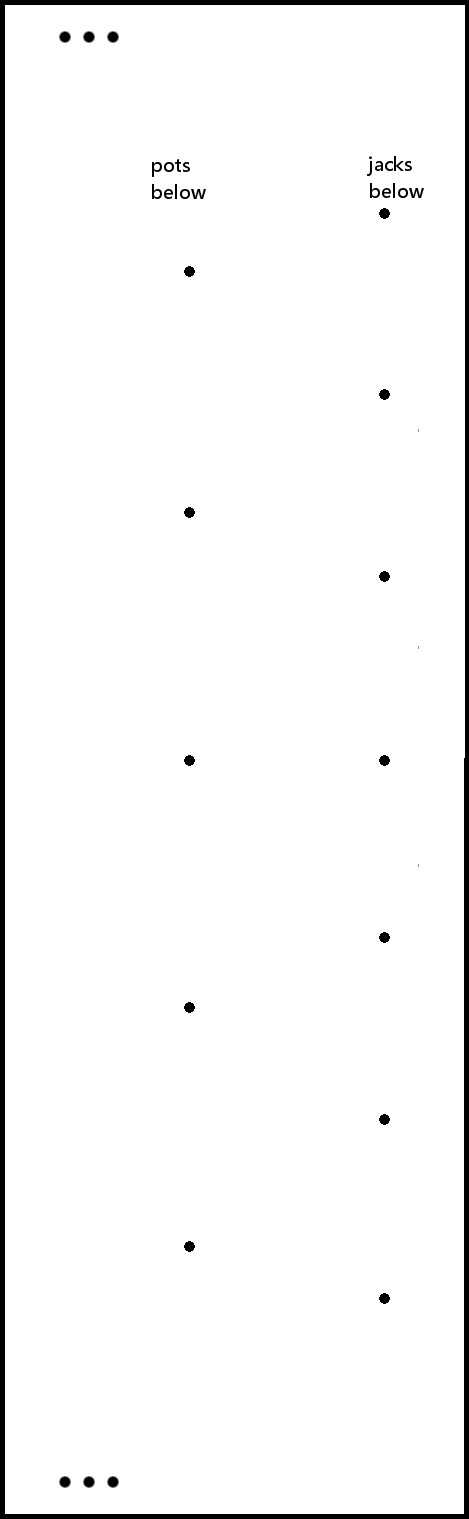

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
