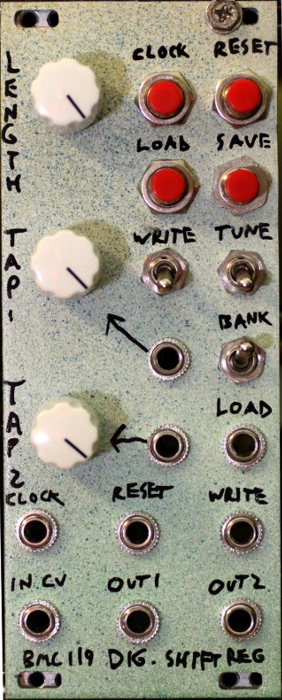

A shift register for control voltages. Useful for creating step sequences from a keyboard or other CV input. Two outputs with voltage controlled step selection, Saving/Loading of sequences to EEPROM, adjustable length from 4 to 64 steps and tuning mode.
Compatible with 12V or 15V systems. VOltage range is 0 to +10V. The Pots are PCB mounted, but all other parts are mounted off board.
For complete descriptions of the way the module is used and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for a PCB/PIC set is $18.
Unfinished eurorack
panels are available for this project, they are 10HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

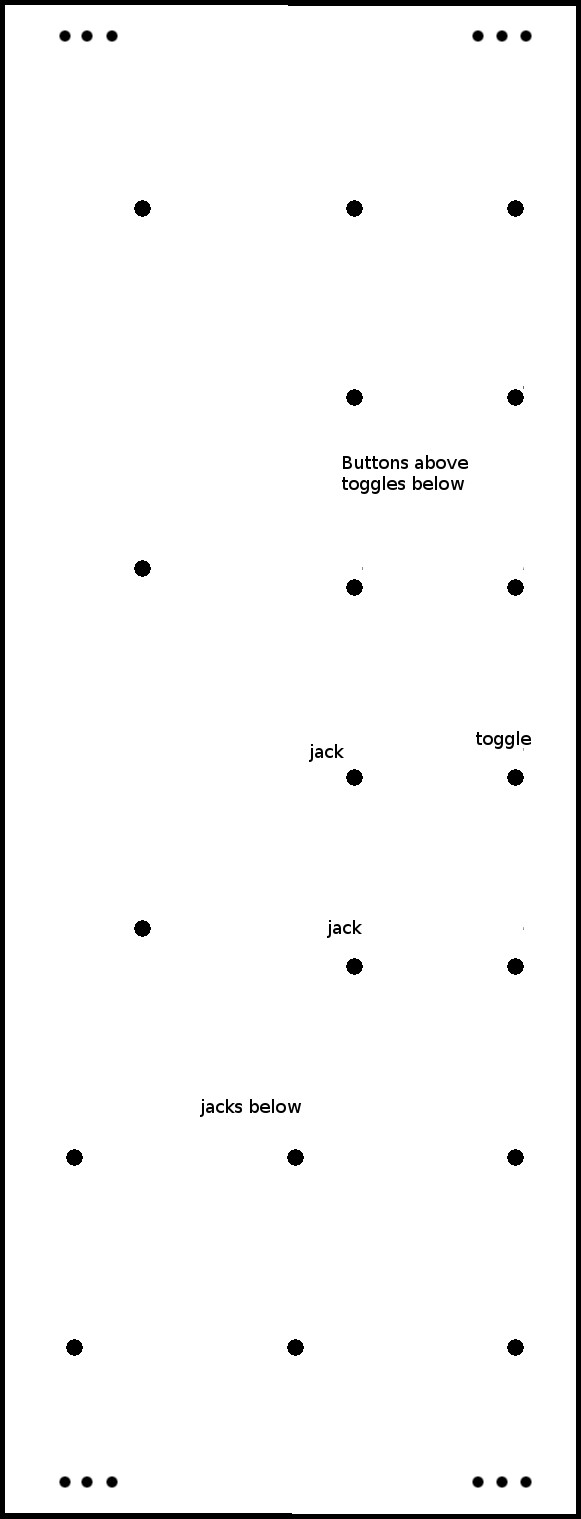

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
