This module converts rhythmic patterns from gates into melodic CV sequences. It uses two 8 stage gate shift registers that can be combined to a single 16 stage. It can also be used as a standalone sequencer of rhythms and melodies.
Compatible with 12V or 15V systems, all jacks/switches are mounted on a PCB for no wiring when building in eurorack. Documentation has pinouts for the interboard connectors for people building in other formats.
For complete descriptions of the way the module is used, mp3 samples and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for a two PCB set is $10.

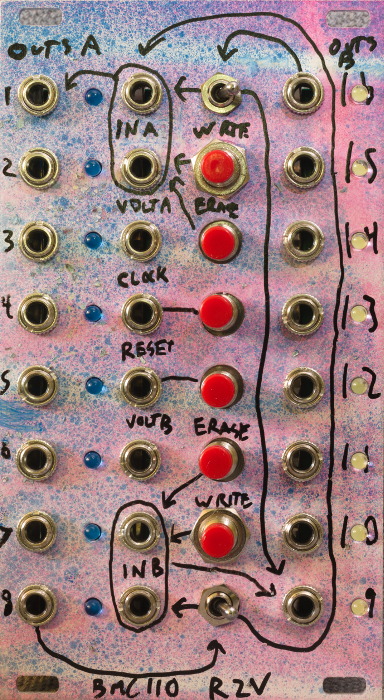

Unfinished eurorack
panels are available for this project, they are 14HP and cost $8 each.
There is

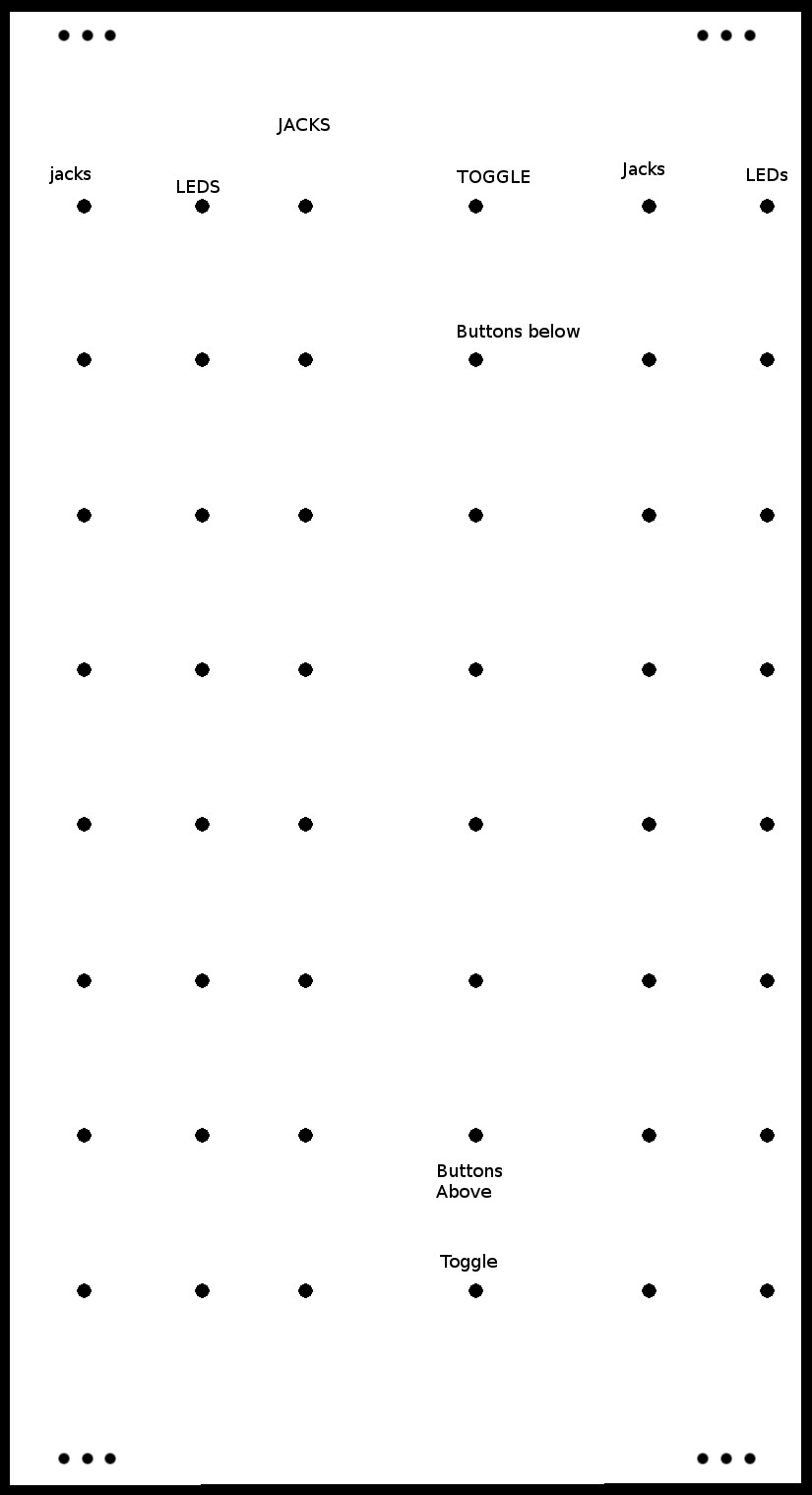

more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
