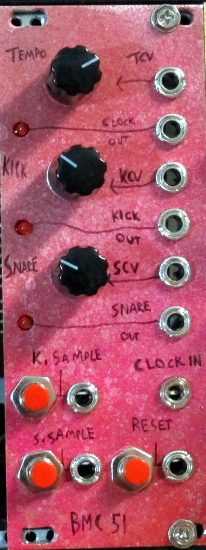

This module is a PIC-based rhythm generator inspired by old rhythm boxes and keyboard presets. Kick and Snare patterns are selected using the knobs. It features an internal clock but is compatible with an external clock. There are CV and trigger inputs for pattern selection allowing for an external sequencer to be used.
It features Eurorack and MOTM style power connecters and can be used on either 12V or 15V systems without modification.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB/PIC set is $16.
Unfinished eurorack
panels are available for this project, they are 10HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

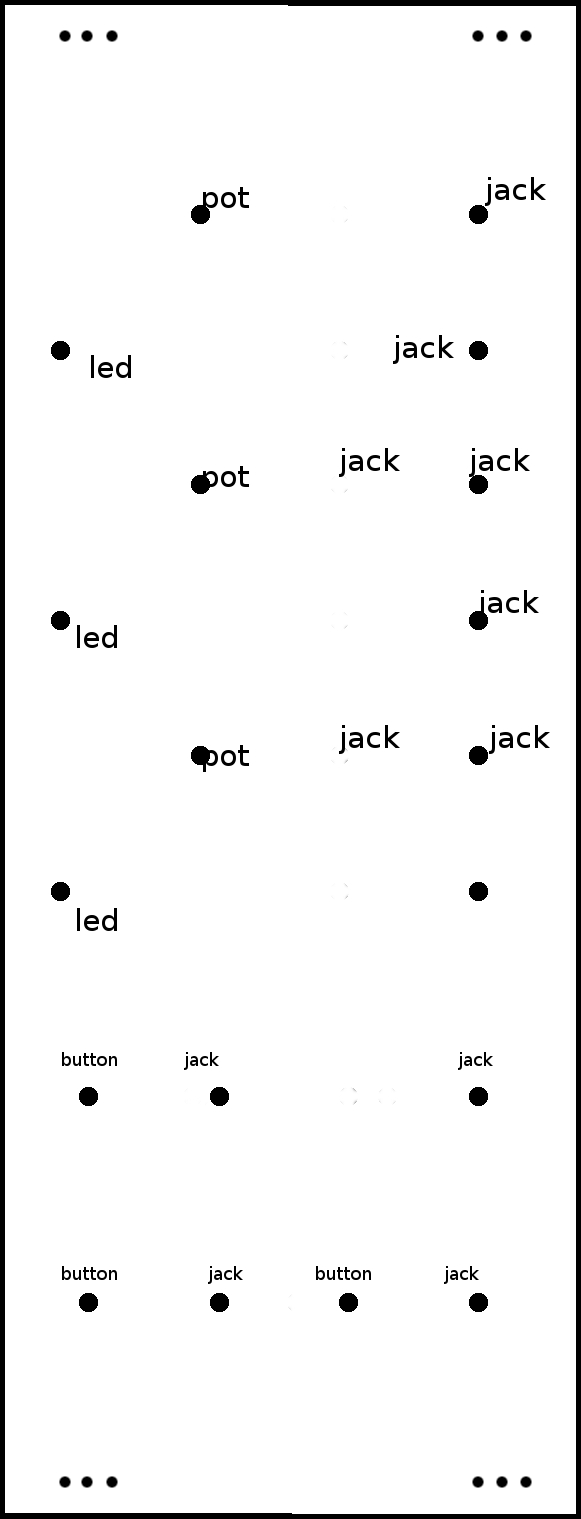

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
