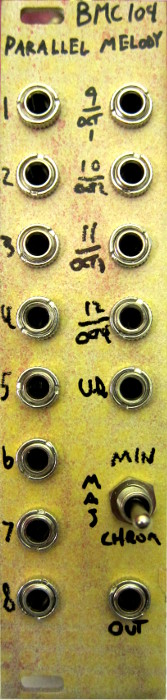

This module acts like a gate/trigger controlled keyboard, with eight note inputs, 4 octave inputs, an update input and a toggle to select between major, minor or chromatic scale. It creates melodic sequences from multiple rhythmic sequences in parallel.
This module uses two circuit boards sandwhiched on top of one another. The panel board has eurorack style jacks, but the top board has both eurorack and MOTM style connectors for those building in another format.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards, PICs and panels are available now. Price for a 2 PCB and PIC set is $22. Top board and PIC only are $18
Unfinished eurorack
panels are available for this project, they are 6HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

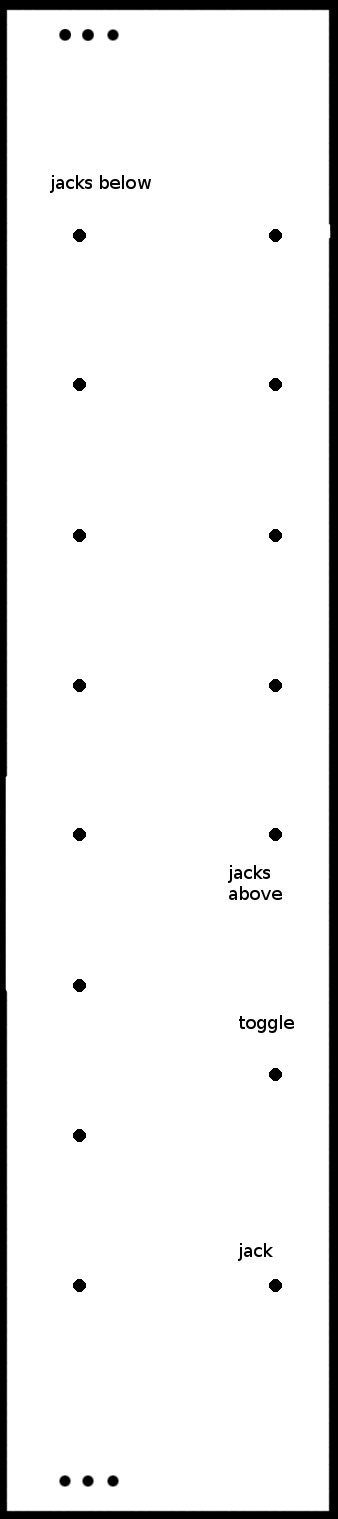

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
