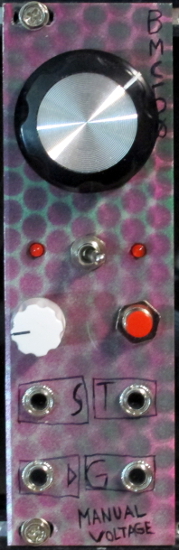

This module is a controller that uses a large knob to control pitch and a button to generate triggers and gates. It features internal Sample/Hold and Slew circuits. The PCB has MOTM and Eurorack style power connecters
The jacks are the only panel parts not PCB-Mounted making for easy wiring while being flexible for use in different synth formats. There are also mounting holes for using offboard pots/switches.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 8HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

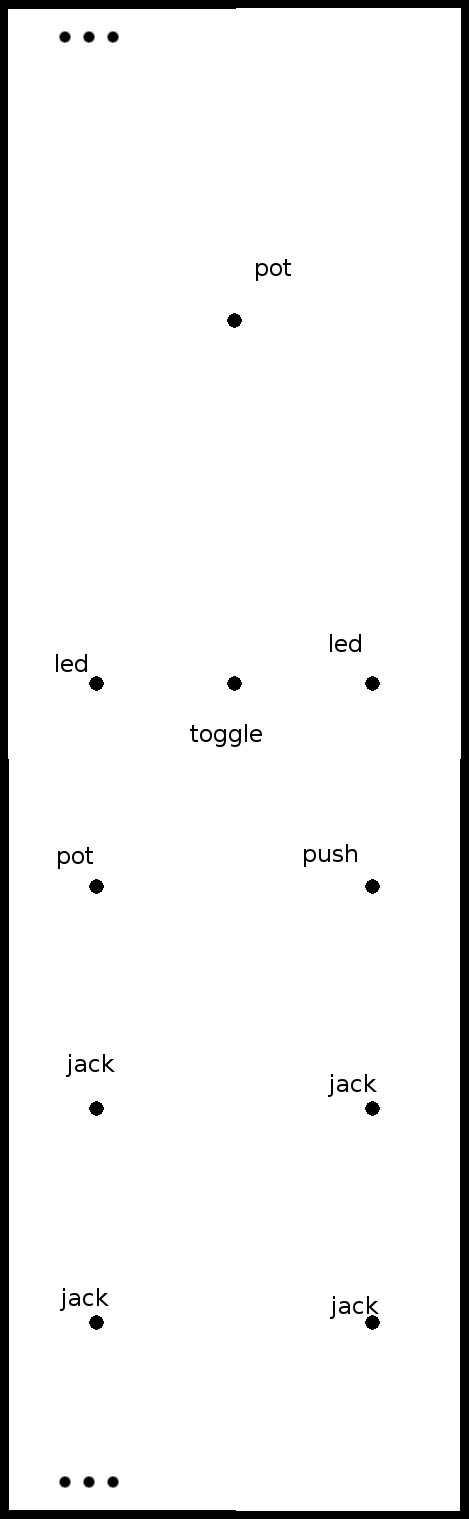

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
