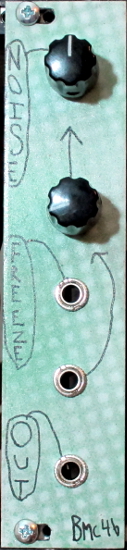

This module is a PIC based noise source. It's capable of a wide variety of sounds while using only a couple of simple controls.
This module has an on-board voltage regulator making it compatible with 12V or 15V systems without any modification. It mounts to the panel using potentiometers.
Here is an mp3 demo of the module. In this demo the noise knob is slowly turned from fully counterclockwise to clockwise position.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB/PIC set is is $16.
Unfinished eurorack
panels are available for this project, they are 6HP and cost $8 each.
There is

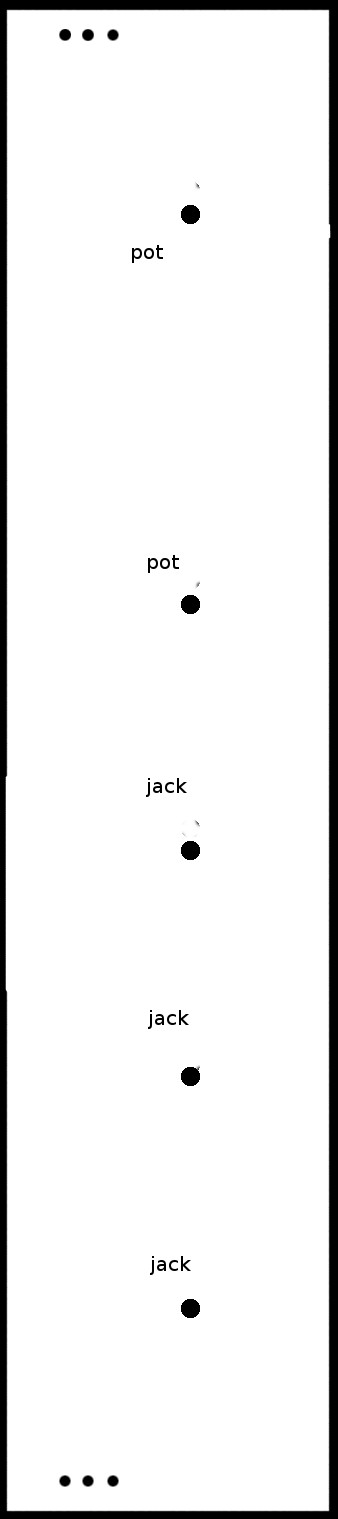

more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
