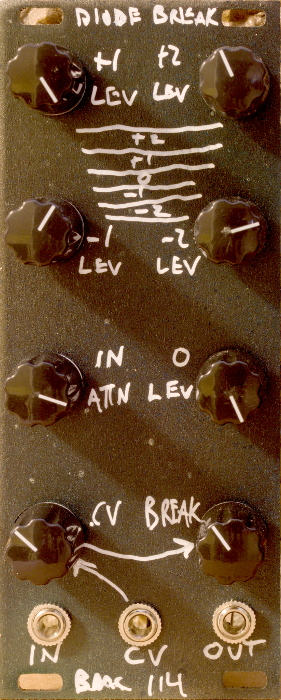

This module splits a waveform into 5 bands of voltage ranges and then mixes those bands together with attenuverters. The break points between bands can be controlled with external CV. This allows for harmonically complex outputs that remind me of strings and woodwinds.
Compatible with 12V or 15V systems. The Pots are PCB mounted, but all jacks are off-board.
Audio Demo: Without external CV for break voltages
Audio Demo: Withexternal CV for break voltages
For complete descriptions of the way the module is used, mp3 samples and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for a PCB is $8.
Unfinished eurorack
panels are available for this project, they are 10HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

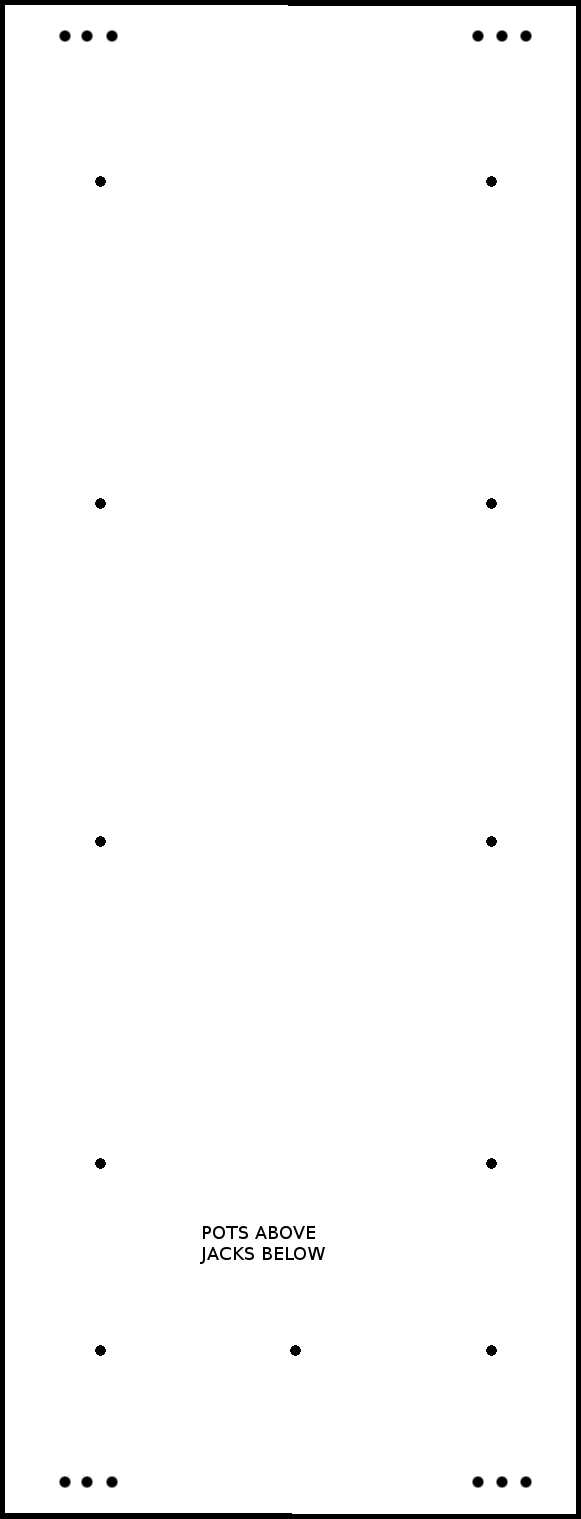

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
