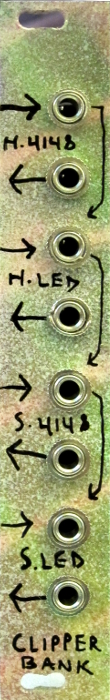

This module is composed of four clipping circuits with no external controls. Each circuit clips to a different level giving different flavors of distortion. Patch it after a VCA to add timbre changes to triangle or sine waves.
Compatable in +/-12V or +/-15V systems. PC mounted jacks for eurorack builds and mounting holes for 1/4" or banana jack systems.
Audio Demo: Sine waves are sent into the module going through the clippers from softest to hardest, then triangle waves, then triangle waves with DC offset
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 4HP and cost $7 each.
There is
more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my

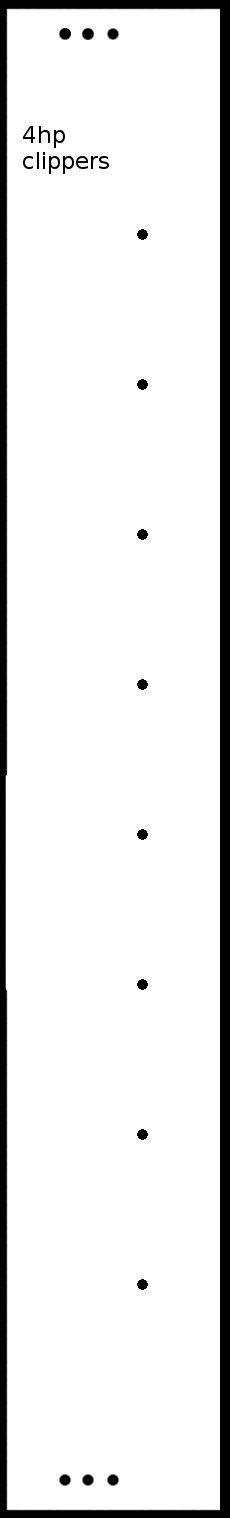

drill guide. That image should be printed at 300dpi for proper
scaling.
