This module is a decade counter with 5 outputs. Each gate or trigger input to the clock will increase the count by one changing which output is active. After 5 outputs or when a gate or trigger is input to the reset input, the count goes back to the first output.
This module is a decade counter with 5 outputs. Each gate or trigger input to the clock will increase the count by one changing which output is active. After 5 outputs or when a gate or trigger is input to the reset input, the count goes back to the first output. The jacks are mounted directly to the PCB for a wiring free build. The PCB also has mounting holes for use with external jacks.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 4HP and cost $7 each.
There is
more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my

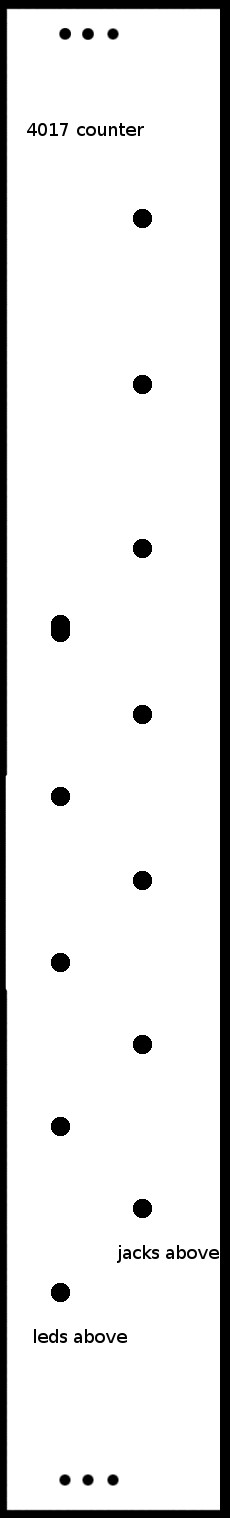

drill guide. That image should be printed at 300dpi for proper
scaling.
