This module is a binary counter/divider. It has clock and reset inputs and five outputs. Can be used to divide audio rate or lfo rate signals by 2, 4, 8, 16 or 32.
The jacks are mounted directly to the PCB for a wiring free build. The PCB also has mounting holes for use with external jacks.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 4HP and cost $7 each.
There is
more information here about panels. If you're interested in drilling your own panel for

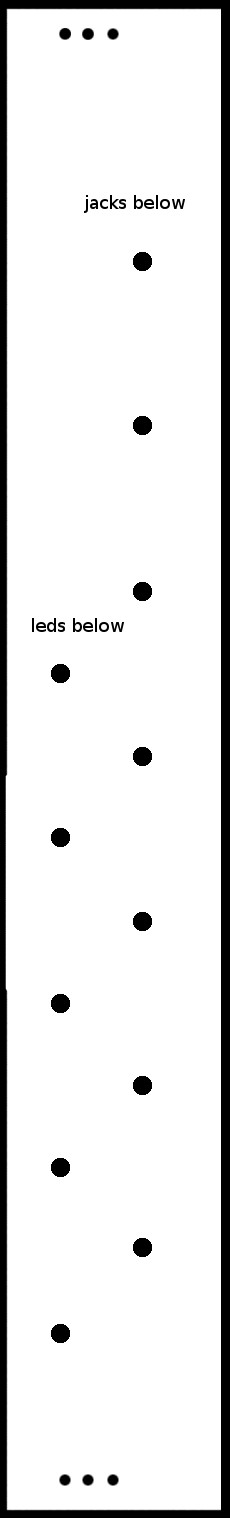

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
