Utility Buttons is a performance/controller module that provides gate/trigger outputs based on button presses. Buttons can be set to act as momentary, latching or tap tempo. Each channel has two outputs, one of which can be configured as a Multiple, inversion or trigger of the other output.
This module works on either 12V or 15V systems with no modification. The switches are mounted to the PCB to minimize wiring, but jacks are offboard so it can be easily used in multiple synthesizer formats. Outputs are +5V.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB/PIC set is $16.

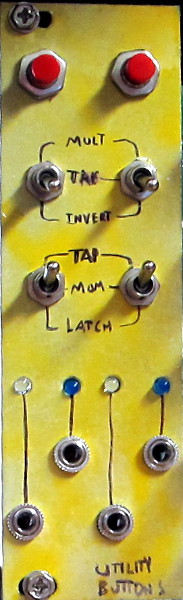

Unfinished eurorack
panels are available for this project, they are 8HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for

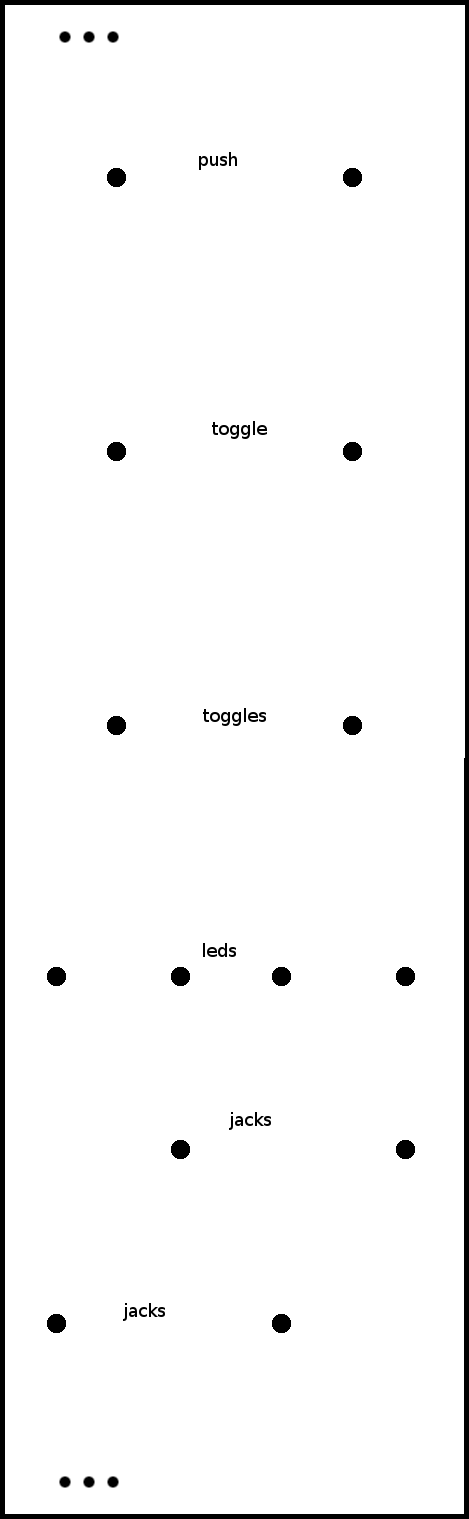

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
