BMC12 Stepped CV Generator

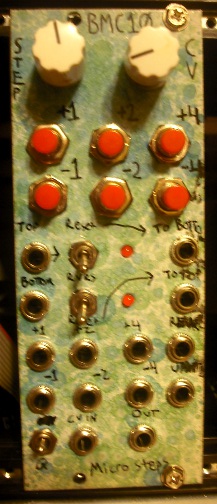

picture of the module

This is a unique module which uses trigger and gate signals to control a CV. It increases or decreases the voltage by a set interval or multiple of that interval. The interval is voltage controllable.

Boards are available now. Price for 1 PCB/PIC set is $20.

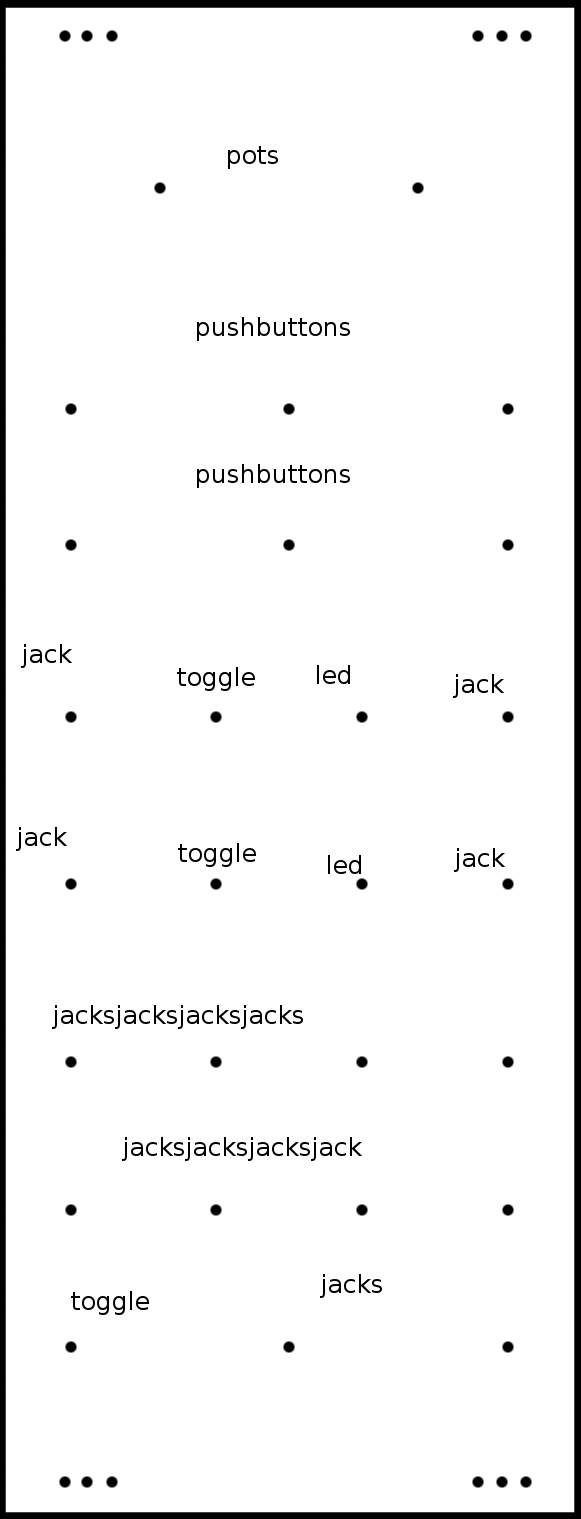

Unfinished eurorack panels are available for this project, they are 12HP and cost $8 each. There is more information here about panels. If you're interested in drilling your own panel for this project, feel free to use my drill guide. That image should be printed at 300dpi for proper scaling.
