This is an effect type module. When a saw, sine or triangle wave is inputted it creates a moving string or chorus like texture to the sound. It uses no external control voltage, and is very easy to use.
This module hs PCB mounted pots and is compatable with 12V and 15V systems.
Here are three MP3 demos of the circuit in action using Saw, Triangle and Sine waveforms. Each demo has adjustments of the settings of the module and of the pitch of the oscillator feeding the module.
SAW WAVE
TRIANGLE WAVE
SINE WAVE
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.

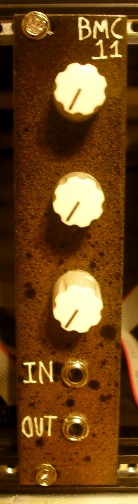

Unfinished eurorack
panels are available for this project, they are 6HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my

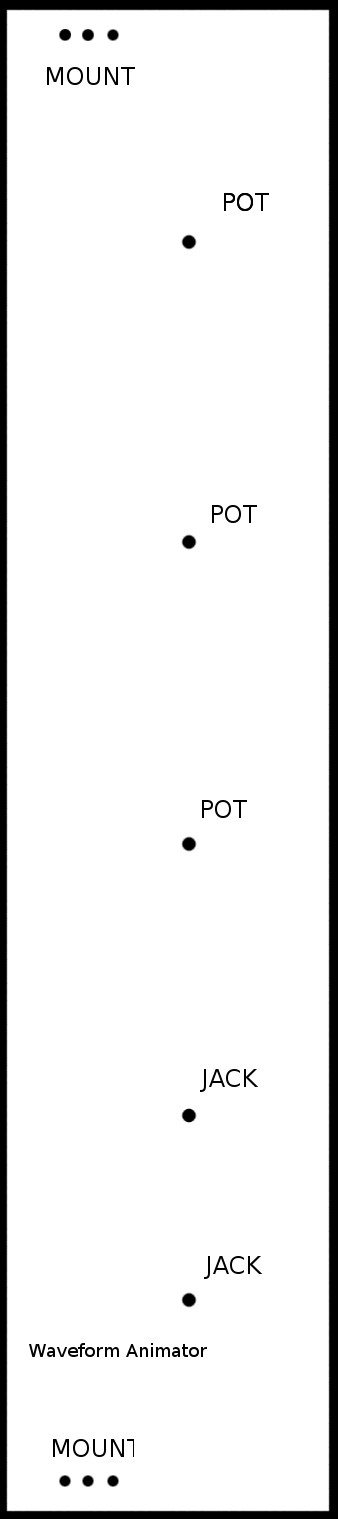

drill guide. That image should be printed at 300dpi for proper
scaling.
