BMC14 Gate Delay / Looper

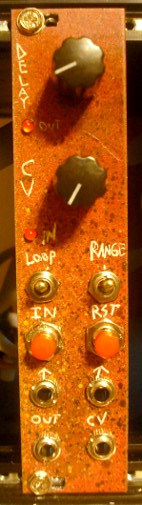

picture of the module

This is a 1-bit digital delay/looper designed to be used with gate signals. It has a maximum sampling time of 3.25 seconds and has a sampling rate of 1.1 khz.

This is a PIC based project, it has an onboard +5V supply, making it compatable with almost any modular system. LEDs and Pots are PCB mounted.

Boards are available now. Price for 1 PCB and PIC set is $14.

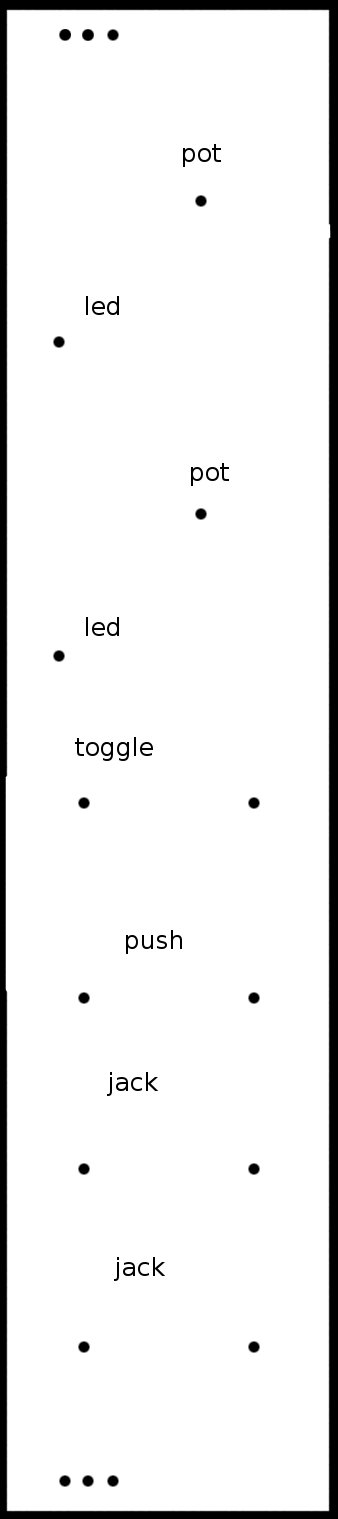

Unfinished eurorack panels are available for this project, they are 6HP and cost $8 each. There is more information here about panels. If you're interested in drilling your own panel for this project, feel free to use my drill guide. That image should be printed at 300dpi for proper scaling.
