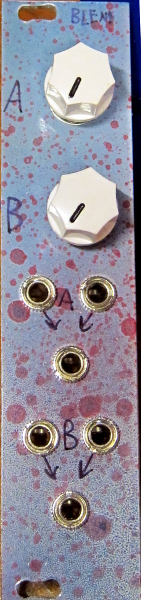

This module is just two blend circuits. Each has two inputs with a knob that blends the two together to a single output.
PC Mounted pots, and mounting holes. Eurorack and MOTM connecter pads for build flexibility. Compatible +/-12V or +/-15V systems.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 6HP and cost $8 each.
There is

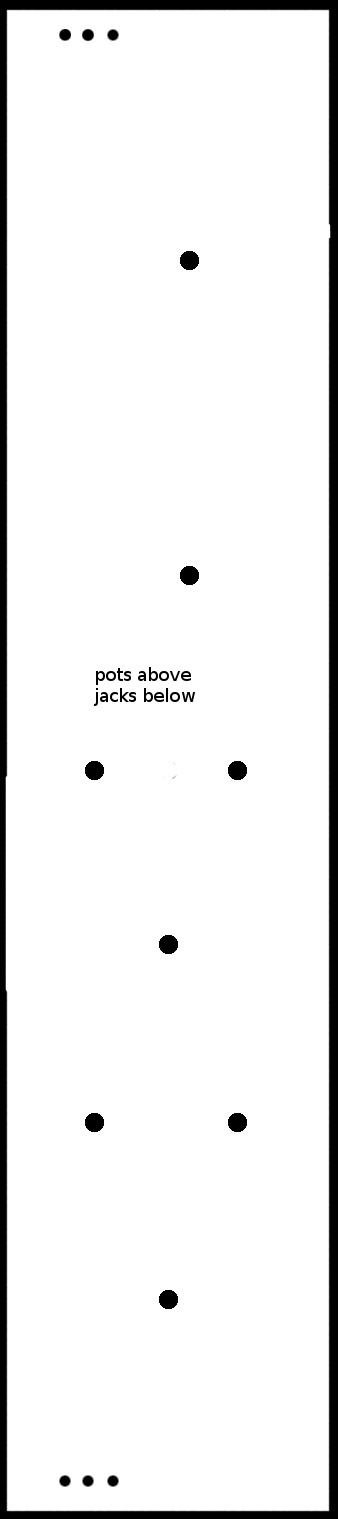

more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
