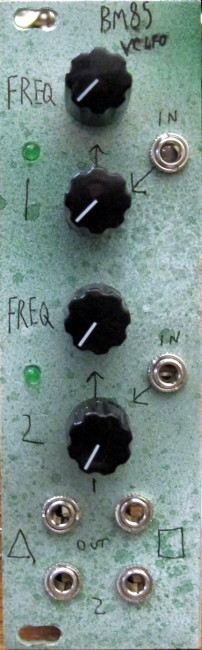

This module provides two voltage controllable low frequency oscillators. Each oscillator has a square and triangle wave output and a single CV input. The oscillator has a maximum frequency of ~25hz and a minimum frequency of .1hz (ten second cycles).
Compatable in +/-12V or +/-15V systems, though 15V systems require some resistor value changes. Low Parts Count. PC Mounted pots, and mounting holes. Eurorack and MOTM connecter pads for maximum build flexibility.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 8HP and cost $8 each.
There is
more information here about panels. If you're interested in drilling your own panel for
this project, feel free to use my

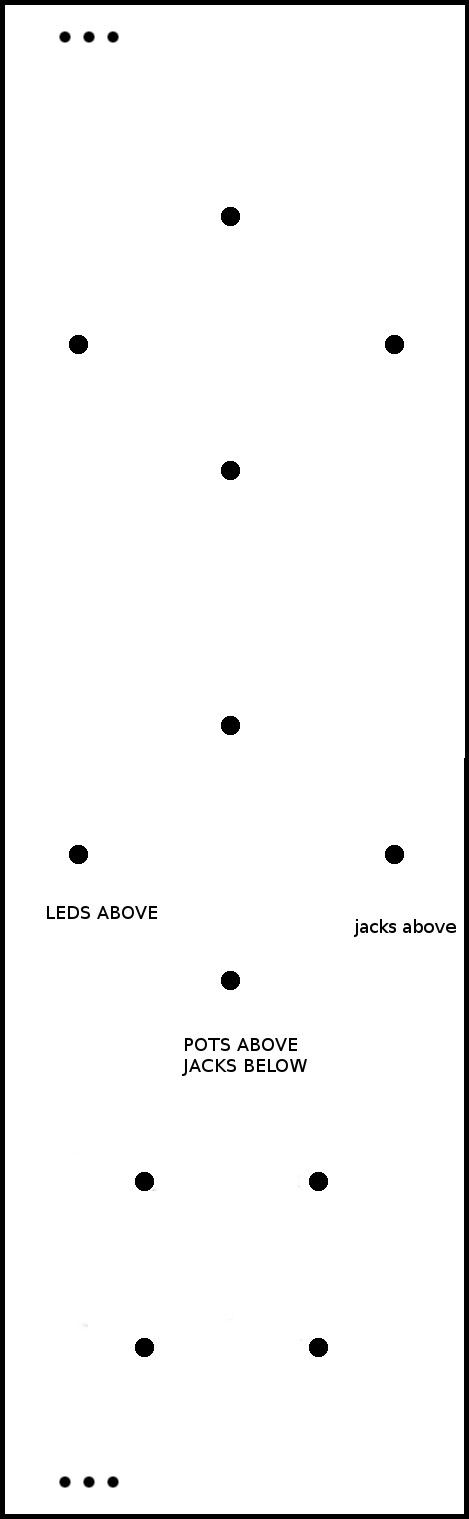

drill guide. That image should be printed at 300dpi for proper
scaling.
